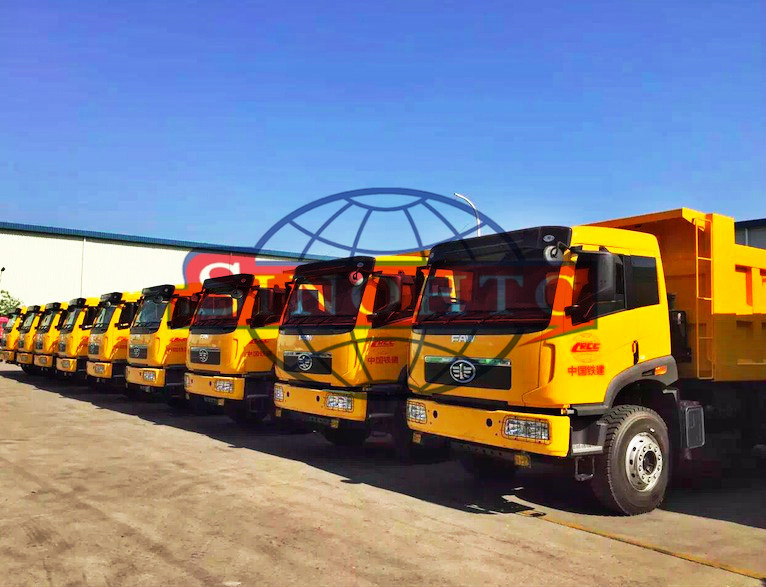

FAW 10 wheels 3 axle Heavy Duty Dump Truck 20 - 30 tons Earthmoving Truck
This FAW 10 wheels Heavy Duty Dump Truck model is popular in Africa, South-east Asia and South America.
The choice of the dump truck or according to specific purpose to choose the appropriate type, because of the dump truck general work environment are hard, choose the brand with quality and excellent public praise is particularly important that truck is earning good tools for good attendance.
Specialist supply variou dump trucks, heavy duty dump truck. Our trucks have been widely used for construction site, mine area, sea port bulk transfer, earthmoving transport, garbage transfer station in the world. Competitive price, durable quality, comfortable driving experience,high safty, low consumption. Your best choice.
Specifications:
| Traction type | 6x4 |
| Driving type | LHD (RHD is optional) |
| Cabin | flat roof, Air conditioner |
| Color | According your request |
| Engine | |
| Brand | WEICHAI |
| Model |
WP10.340E32 Euro2 | |
| Engine type | Diesel 4-stroke direct injection engine, 4-cylinder in-line
with water cooling, turbo-charging & intercooling |
| Horsepower | 340hp |
| Rated power | 250kw |
| Displacement | 9.726 liters |
| Max torque | 1250NM@2200rpm |
| Bore/Stroke | 126/130 |
Gear box |
Fast 9JS150T(9 speeds) | |
Clutch |
300mm Diaphragm type | |
| Front axle | FAW D643 |
| Rear axle | FAW 300 reduction driving axle
Ratio: 1:5.26 |
| Tyre | 12.00R20 |
| Frame | 320*90*(8+8)mm |
| Rated voltage | 24V |
| Dimension |
| Wheel base(mm) | 3650+1450 |
| Approach/departure angle(º) | 18/15 |
| Body |
| Inner size (mm) | Length | 5400 |
| Width | 2300 |
| Height | 1100-1500 |
| Capacity | 13.66-18.34CBM |
| Thickness of steel(mm) | floor 8mm side & back 4mm |
| Tipping type | Middle tipping type under the body |
Our Product Advantages
(1) Competitive Factory Price and Excellent Quality
(2) Perfect after-sale service
(3) One year quality guarantee or within 30000km, which comes first.
(4) The overseas engineers are always ready to deal with unexpected needs.
