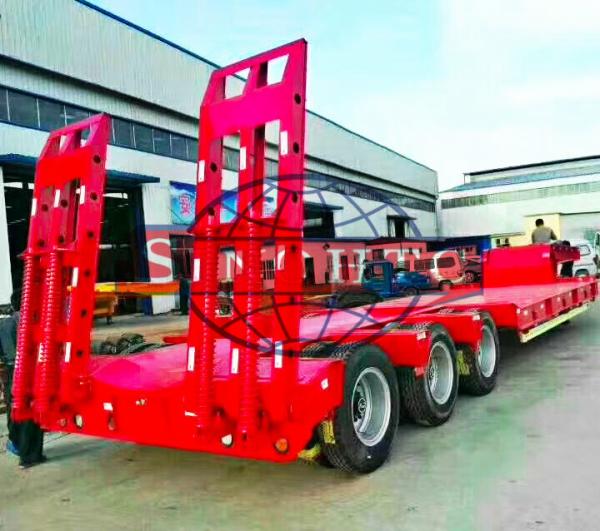

3 Axles Gooseneck Low Bed Semi Trailer For Excavator Transport 60 Ton Load

Product Categories
Qingdao Hetanch Truck Co.,Ltd
Contact Now

3 Axles Gooseneck Low Bed Semi Trailer For Excavator Transport 60 Ton Load

Brand Name : SINOHTC

Model Number : HTC9601DPB

Certification : ISO9001

Place of Origin : Qingdao China

MOQ : 1 unit

Price : Negotiation

Supply Ability : 10 UNITS PER MONTH

Delivery Time : 30 DAYS

Packaging Details : Bulk cargo vessel, RO-RO vessel, 40/45 HQ container

Payment Terms : L/C, T/T, Western Union, MoneyGram

Trailer type : Low bed semi trailer

Axle No. : 3 axle,

Capacity : >50 tons

Material : Steel, High-strength Steel

Tyre No. : 12 pcs

Tyre model : 8.25R20, 11R22.5

Contact Now

3axles Excavator Transport Gooseneck Lowboy Low Bed Lowbed Semi Trailer

Trailer Model 3axles Excavator Transport Gooseneck Lowboy Low Bed Semi Trailer
Function Tractor and excavator transportation

Overall Dimension

(L*W *H)(mm)

 13000*2500*1700
Tare Weight(KG) 8500
Loading Capacity(KG) 60000
Axle Brand BPW Axle
Axle Number 3
Suspension System Standard Mechanical suspension
Steel Spring 10/10/10 leaf spring suspension
Main Beam

The height of the beam is 500 mm,the

thickness of upper plate is16mm,down plate

is 18mm,middle plate is 10mm.
Floor 4mm

Tire Type

and Quantity

 11.00R20 12units
Traction Pin 50# or 90#, removeable
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear Standard 28Ton, external
BrakingSystem Dual Line braking system (none ABS)
Brake air chamber Six big double air chamber
Electrical System

1. Voltage: 24v

2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard According to customer's requirement
Painting Optional(yellow,red,white,blue etc.)
Packing Polish with wax before shipping

our 3 axle Low bed trailer, can be used to carry all kinds earth moving machineries,

3 Axles Gooseneck Low Bed Semi Trailer For Excavator Transport 60 Ton Load

Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketiing for over 10 years.

Q2. What markets do your vehicle export to?
Africa,Asia,South America, Oceanica, Middle East countries etc.

Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.

Q5. How can I get the price of your vehicle?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.


Product Tags:

lowboy gooseneck trailer



hydraulic low bed trailer


Quality 3 Axles Gooseneck Low Bed Semi Trailer For Excavator Transport 60 Ton Load wholesale

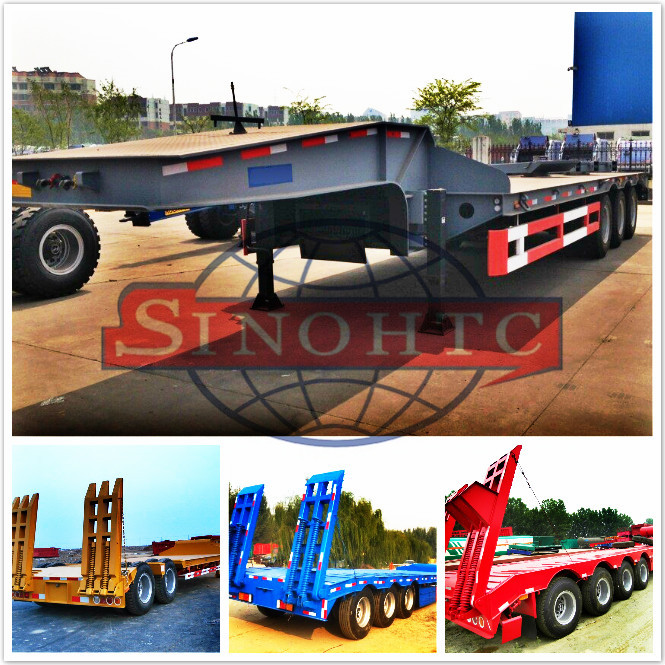

3 Axles Gooseneck Low Bed Semi Trailer For Excavator Transport 60 Ton Load Images
